Unreasonable reset is occurred during SD card tick; SD card connection
when SD card connects, unreasonable reset is occurred under USB plug-in is powerred; not under SMPS powerred.
Revision of 3CCD camera base board
This is the revision PCB of 3CCD camera.
It has replaced FPGA and configuration PROM; XC2S500e, 4Mbits PROM.
I wish to do well.
2011년 5월 25일 수요일
3CCD Camera System
- Coolrunner II X2C256 - 144pin CPLD, 3 x OV9121, 2 x Sram( 1M x 16bits) , Cypress USB Fifo
- Schematic
- State Diagram
- Timing Chart
- Verilog code
`define CONFIG_RISING_EDGE_CLK
//`define CONFIG_FALLING_EDGE_CLK
module triple_camera(RESET, TRIG, CLK, LED,
VSYNC, HREF_DN, HREF_MID, HREF_UP, D_DN, D_MID, D_UP,
nWE, nOE, A, IO,
nFLAG, nPKTEND, nSLWR, FD);
input wire RESET; // Reset CPLD
input wire TRIG; // Start Data Transfer
input wire CLK; // External Main Clock
output wire [3:0] LED; // Express the Status of CPLD Processing
input wire VSYNC; // Vertical Synchronization from Image Sensor
input wire HREF_DN; // Horizontal Reference from Image Sensor
input wire HREF_MID;
input wire HREF_UP;
input wire [7:0] D_UP; // Pixel Data from Up Image Sensor
input wire [7:0] D_MID; // Pixel Data from Mid Image Sensor
input wire [7:0] D_DN; // Pixel Data from Dn Image Sensor
output reg nWE; // Write Enable for Memory
output reg nOE; // Read Enable(Output Enable) for Memory
parameter ADDR_SIZE = 20;
output wire [ADDR_SIZE-1:0] A; // Address of Memory
inout wire [31:0] IO; // Data Bus of Memory
input wire nFLAG; // Programmable Flag informing 4 bytes before full of USB FIFO
output wire nPKTEND; // Flush internal FIFO of USB into Host
output reg nSLWR; // Transfer Data Enable to USB FIFO
output reg [15:0] FD; // Data Bus for USB FIFO
// camera FSM
parameter CAMERA_STATE_SIZE = 12;
parameter CAMERA_IDLE = 12'b000000000001;
parameter CAMERA_WAIT_VSYNC = 12'b000000000010;
parameter CAMERA_VSYNC = 12'b000000000100;
parameter CAMERA_WAIT_HREF = 12'b000000001000;
parameter CAMERA_H0 = 12'b000000010000;
parameter CAMERA_H1 = 12'b000000100000;
parameter CAMERA_H2 = 12'b000001000000;
parameter CAMERA_H3 = 12'b000010000000;
parameter CAMERA_H4 = 12'b000100000000;
parameter CAMERA_H5 = 12'b001000000000;
parameter CAMERA_H6 = 12'b010000000000;
parameter CAMERA_H7 = 12'b100000000000;
reg [CAMERA_STATE_SIZE-1:0] up_cam_state;
reg [CAMERA_STATE_SIZE-1:0] mid_cam_state;
reg [CAMERA_STATE_SIZE-1:0] dn_cam_state;
reg [7:0] write_data0_0;
reg [7:0] write_data0_1;
reg [7:0] write_data0_2;
reg [7:0] write_data0_3;
reg write_pend0;
reg [7:0] write_data1_0;
reg [7:0] write_data1_1;
reg [7:0] write_data1_2;
reg [7:0] write_data1_3;
reg write_pend1;
reg [7:0] write_data2_0;
reg [7:0] write_data2_1;
reg [7:0] write_data2_2;
reg [7:0] write_data2_3;
reg [ADDR_SIZE:0] write_addr;
/* always @(posedge nWE or posedge RESET) begin
if (RESET) write_addr <= 0;
else write_addr <= write_addr + 1;
end*/
wire nWERise;
reg nWEPre;
always @(posedge RESET or negedge CLK)
begin
if(RESET)
nWEPre <= 1'b1;
else
nWEPre <= nWE;
end
assign nWERise = nWE & ~nWEPre;
always @(posedge RESET or negedge CLK)
begin
if(RESET)
write_addr <= 0;
else if(nWERise)
write_addr <= write_addr + 1;
end
reg [ADDR_SIZE:0] read_addr;
/* always @(posedge nOE or posedge RESET) begin
if (RESET) read_addr <= 0;
else read_addr <= read_addr + 1;
end
*/
wire nOERise;
reg nOEPre;
always @(posedge RESET or negedge CLK)
begin
if(RESET)
nOEPre <= 1'b1;
else
nOEPre <= nOE;
end
assign nOERise = nOE & ~nOEPre;
always @(posedge RESET or negedge CLK)
begin
if(RESET)
read_addr <= 0;
else if(nOERise)
read_addr <= read_addr + 1;
end
/* reg empty;
always @(write_addr or read_addr) begin
if (~|(write_addr[ADDR_SIZE:0]^read_addr[ADDR_SIZE:0])) empty <= 1;
else empty <= 0;
end
*/
reg read_flag;
wire empty;
assign empty = ~|(write_addr[ADDR_SIZE:0] ^ read_addr[ADDR_SIZE:0]);
`ifdef CONFIG_RISING_EDGE_CLK
always @(posedge RESET or posedge CLK) begin
`else //CONFIG_FALLING_EDGE_CLK
always @(posedge RESET or negedge CLK) begin
`endif
if (RESET)
begin
up_cam_state <= CAMERA_IDLE;
write_pend0 <= 0;
write_pend1 <= 0;
nWE <= 1;
read_flag <= 0;
end
else
begin
write_pend0 <= 0;
write_pend1 <= 0;
nWE <= 1;
if (nFLAG & (~empty))
read_flag <= 1;
else
read_flag <= 0;
case (up_cam_state)
CAMERA_IDLE:
if (TRIG)
up_cam_state <= CAMERA_WAIT_VSYNC;
else
up_cam_state <= CAMERA_IDLE;
CAMERA_WAIT_VSYNC:
if (VSYNC)
up_cam_state <= CAMERA_VSYNC;
else
up_cam_state <= CAMERA_WAIT_VSYNC;
CAMERA_VSYNC:
if (VSYNC)
up_cam_state <= CAMERA_VSYNC;
else
up_cam_state <= CAMERA_WAIT_HREF;
CAMERA_WAIT_HREF:
if (HREF_UP)
begin
up_cam_state <= CAMERA_H0;
write_data0_2 <= D_UP;
end
else
begin
if (VSYNC)
up_cam_state <= CAMERA_IDLE;
else
up_cam_state <= CAMERA_WAIT_HREF;
end
CAMERA_H0:
up_cam_state <= CAMERA_H1;
CAMERA_H1:
begin
up_cam_state <= CAMERA_H2;
write_data1_1 <= D_UP;
read_flag <= 0;
end
CAMERA_H2:
begin
up_cam_state <= CAMERA_H3;
write_pend0 <= 1;
nWE <= 0;
end
CAMERA_H3:
begin
up_cam_state <= CAMERA_H4;
write_data2_0 <= D_UP;
read_flag <= 0;
end
CAMERA_H4:
begin
up_cam_state <= CAMERA_H5;
write_pend1 <= 1;
nWE <= 0;
end
CAMERA_H5:
begin
up_cam_state <= CAMERA_H6;
write_data2_3 <= D_UP;
read_flag <= 0;
end
CAMERA_H6:
begin
up_cam_state <= CAMERA_H7;
nWE <= 0;
end
CAMERA_H7:
if (HREF_UP)
begin
up_cam_state <= CAMERA_H0;
write_data0_2 <= D_UP;
end
else
begin
up_cam_state <= CAMERA_WAIT_HREF;
end
default:
up_cam_state <= CAMERA_IDLE;
endcase
end
end
`ifdef CONFIG_RISING_EDGE_CLK
always @(posedge RESET or posedge CLK) begin
`else //CONFIG_FALLING_EDGE_CLK
always @(posedge RESET or negedge CLK) begin
`endif
if (RESET)
begin
mid_cam_state <= CAMERA_IDLE;
end
else
begin
case (mid_cam_state)
CAMERA_IDLE:
if (TRIG)
mid_cam_state <= CAMERA_WAIT_VSYNC;
else
mid_cam_state <= CAMERA_IDLE;
CAMERA_WAIT_VSYNC:
if (VSYNC)
mid_cam_state <= CAMERA_VSYNC;
else
mid_cam_state <= CAMERA_WAIT_VSYNC;
CAMERA_VSYNC:
if (VSYNC)
mid_cam_state <= CAMERA_VSYNC;
else
mid_cam_state <= CAMERA_WAIT_HREF;
CAMERA_WAIT_HREF:
if (HREF_UP)
begin
mid_cam_state <= CAMERA_H0;
write_data0_1 <= D_MID;
end
else
begin
if (VSYNC)
mid_cam_state <= CAMERA_IDLE;
else
mid_cam_state <= CAMERA_WAIT_HREF;
end
CAMERA_H0:
mid_cam_state <= CAMERA_H1;
CAMERA_H1:
begin
mid_cam_state <= CAMERA_H2;
write_data1_0 <= D_MID;
end
CAMERA_H2:
mid_cam_state <= CAMERA_H3;
CAMERA_H3:
begin
mid_cam_state <= CAMERA_H4;
write_data1_3 <= D_MID;
end
CAMERA_H4:
mid_cam_state <= CAMERA_H5;
CAMERA_H5:
begin
mid_cam_state <= CAMERA_H6;
write_data2_2 <= D_MID;
end
CAMERA_H6:
mid_cam_state <= CAMERA_H7;
CAMERA_H7:
if (HREF_MID)
begin
mid_cam_state <= CAMERA_H0;
write_data0_1 <= D_MID;
end
else
begin
mid_cam_state <= CAMERA_WAIT_HREF;
end
default:
mid_cam_state <= CAMERA_IDLE;
endcase
end
end
`ifdef CONFIG_RISING_EDGE_CLK
always @(posedge RESET or posedge CLK) begin
`else //CONFIG_FALLING_EDGE_CLK
always @(posedge RESET or negedge CLK) begin
`endif
if (RESET)
begin
dn_cam_state <= CAMERA_IDLE;
end
else
begin
case (dn_cam_state)
CAMERA_IDLE:
if (TRIG)
dn_cam_state <= CAMERA_WAIT_VSYNC;
else
dn_cam_state <= CAMERA_IDLE;
CAMERA_WAIT_VSYNC:
if (VSYNC)
dn_cam_state <= CAMERA_VSYNC;
else
dn_cam_state <= CAMERA_WAIT_VSYNC;
CAMERA_VSYNC:
if (VSYNC)
dn_cam_state <= CAMERA_VSYNC;
else
dn_cam_state <= CAMERA_WAIT_HREF;
CAMERA_WAIT_HREF:
if (HREF_DN)
begin
dn_cam_state <= CAMERA_H0;
write_data0_0 <= D_DN;
end
else
begin
if (VSYNC)
dn_cam_state <= CAMERA_IDLE;
else
dn_cam_state <= CAMERA_WAIT_HREF;
end
CAMERA_H0:
dn_cam_state <= CAMERA_H1;
CAMERA_H1:
begin
dn_cam_state <= CAMERA_H2;
write_data0_3 <= D_DN;
end
CAMERA_H2:
dn_cam_state <= CAMERA_H3;
CAMERA_H3:
begin
dn_cam_state <= CAMERA_H4;
write_data1_2 <= D_DN;
end
CAMERA_H4:
dn_cam_state <= CAMERA_H5;
CAMERA_H5:
begin
dn_cam_state <= CAMERA_H6;
write_data2_1 <= D_DN;
end
CAMERA_H6:
dn_cam_state <= CAMERA_H7;
CAMERA_H7:
if (HREF_DN)
begin
dn_cam_state <= CAMERA_H0;
write_data0_0 <= D_DN;
end
else
begin
dn_cam_state <= CAMERA_WAIT_HREF;
end
default:
dn_cam_state <= CAMERA_IDLE;
endcase
end
end
parameter DATA_HDLR_SIZE = 5;
parameter DATA_HDLR_IDLE = 5'b00001;
parameter DATA_HDLR_READ = 5'b00010;
parameter DATA_HDLR_WRITE_LOW = 5'b00100;
parameter DATA_HDLR_LOW_DONE = 5'b01000;
parameter DATA_HDLR_WRITE_HIGH = 5'b10000;
reg [15:0] read_data;
reg [DATA_HDLR_SIZE-1:0] data_hdlr_state;
`ifdef CONFIG_RISING_EDGE_CLK
always @(posedge RESET or posedge CLK) begin
`else // CONFIG_FALLING_EDGE_CLK
always @(posedge RESET or negedge CLK) begin
`endif
if (RESET)
begin
data_hdlr_state <= DATA_HDLR_IDLE;
nOE <= 1;
nSLWR <= 1;
end
else
begin
nOE <= 1;
nSLWR <= 1;
case (data_hdlr_state)
DATA_HDLR_IDLE:
if (read_flag)
begin
data_hdlr_state <= DATA_HDLR_READ;
nOE <= 0;
end
else
begin
data_hdlr_state <= DATA_HDLR_IDLE;
end
DATA_HDLR_READ:
begin
data_hdlr_state <= DATA_HDLR_WRITE_LOW;
read_data <= IO[31:16];
nSLWR <= 0;
FD <= IO[15:0];
end
DATA_HDLR_WRITE_LOW:
data_hdlr_state <= DATA_HDLR_LOW_DONE;
DATA_HDLR_LOW_DONE:
begin
data_hdlr_state <= DATA_HDLR_WRITE_HIGH;
nSLWR <= 0;
FD <= read_data;
end
DATA_HDLR_WRITE_HIGH:
if (read_flag)
begin
data_hdlr_state <= DATA_HDLR_READ;
nOE <= 0;
end
else
begin
data_hdlr_state <= DATA_HDLR_IDLE;
end
default:
data_hdlr_state <= DATA_HDLR_IDLE;
endcase
end
end
assign A = nOE ? write_addr[ADDR_SIZE-1:0] : read_addr[ADDR_SIZE-1:0];
assign IO = nOE ? (write_pend0 ? {write_data0_3, write_data0_2, write_data0_1, write_data0_0} :
(write_pend1 ? {write_data1_3, write_data1_2, write_data1_1, write_data1_0} :
{write_data2_3, write_data2_2, write_data2_1, write_data2_0})) : 'hz;
assign nPKTEND = 1;
endmodule
- Synthesis Option
Keep Hierarchy : No
Macro Preserve : Upcheck
- Fitting Option
I/O Voltage Standard : LVCMOS33
Logic Optimization : Density
- Synthesize Report
Summary
| Design Name | entity |
| Fitting Status | Successful |
| Software Version | M.70d |
| Device Used | XC2C256-7-TQ144 |
| Date | 5-25-2011, 7:42PM |
RESOURCES SUMMARY
| Macrocells Used | Pterms Used | Registers Used | Pins Used | Function Block Inputs Used |
|---|---|---|---|---|
| 240/256 (94%) | 547/896 (62%) | 191/256 (75%) | 116/118 (99%) | 526/640 (83%) |
PIN RESOURCES
|
|

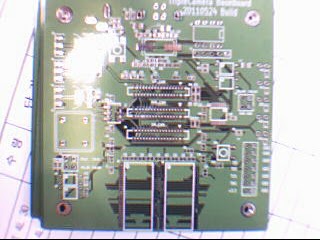

- Picture
Result
... But it can't work. If MCLK is set as 30Mhz, it works properly. It need replacement of CPLD with FPGA (maybe XC3S500E-208pin).
2011년 5월 19일 목요일
작업일지
아무래도 PC 의 불안정성 및 덩치가 나날이 커가는 임베디드 시스템 때문에
BeagleBoard를 가지고 하려던 작업들을 다시 시작하려고 보드를 켜보았다.
우선 아답터보다 USB전원을 가지고 켜보았더니 Kernel Panic 이 발생해서
구글에서 찾아 보았더니 Y자 USB케이블을 사용하란다.
USB포트 두곳에서 전원을 끌어 오던가 5V 아답터를 사용하란다.
아답터로 했더니 된다. 그럼 500mA이상 1A이하를 먹는다는 이야긴데
도데체 전원을 얼마나 먹는 건지 전원 많이 먹는 것들은 아무것도 없는데...
ARM이 많이 먹는 건지 DSP 코어가 많이 먹는건지 모르겠다.
부팅할때는 DSP 코어는 아무 관여를 안하는데....
아무래도 ARM이 저전력이라는 이야기는 조금씩 무색해 지는것 같다.
피드 구독하기:
글 (Atom)
